optical coherence tomography scanner 14 types of analysis Rich image editing software

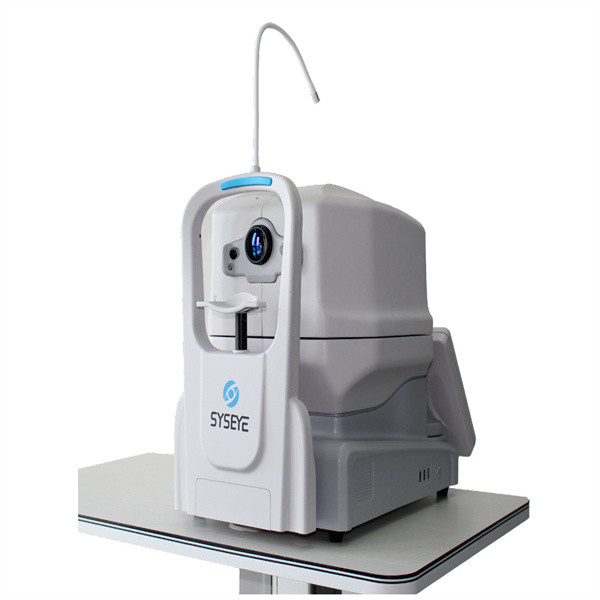

OCT RetiView 500 can perform tomographic imaging on the macular area, optic disc, choroid and other tissues of the fundus, providing important diagnostic basis and treatment for eye diseases, especially fundus diseases, glaucoma screening, diagnosis, follow-up and efficacy evaluation, a high-resolution, non-contact, non-invasive imaging technique for easy and fast examination.
Features:
1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.
Specifications of SD OCT Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
SD OCT Machine has never been so affordable. More people can benefit from the advanced technology now.
1.Fully automatic one-key operation, automatic eye tracking, automatic tomography of the macula, optic disc and other parts
2.Up to 14 types of analysis, accurate and comprehensive analysis of the fundus
3.The use of OCT to measure macular hole size before eye surgery allows doctors to objectively assess the effect of macular hole surgery, and the changes in diabetic macular edema can be accurately and predictably measured by OCT
4.Possibility to diagnose fine vitreomacular traction and provide accurate pre- and post-operative macular thickness assessment
5.Can accurately measure subtle changes in retinal structure and make precise analysis of the retinal nerve fiber layer
6.Rich image editing software
7.Monocular comprehensive analysis, optic disc and RNFL analysis
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
