Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
RetiView 500
Contact Us
Video
Video
Video

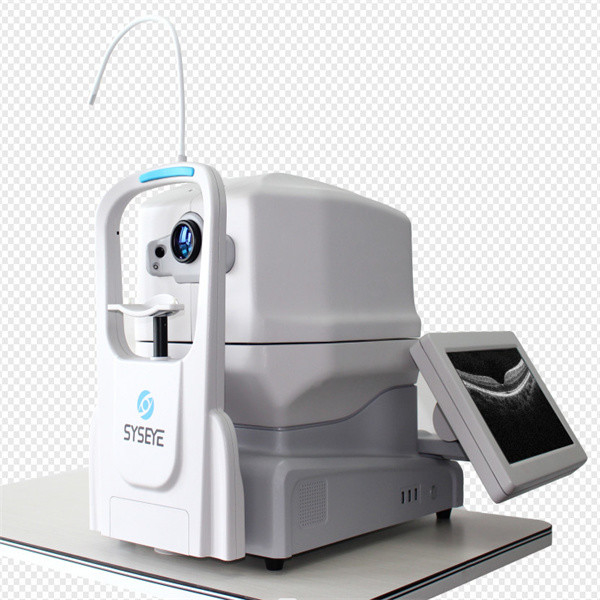

optical coherence tomography device high-resolution non-contact, non-invasive imaging technique
optical coherence tomography device is a high-resolution, non-contact biological tissue imaging technique. Since the early 1990 s application in ophthalmology clinical, since the technology enables us to get similar to eye tissue pathological changes in the living image, improve our understanding of some disease development process, is the ophthalmic diagnostic radiology, ultrasound diagnosis, angiographic diagnosis after another new imaging diagnostic techniques, And has become the development trend and tide of ophthalmic diagnosis and treatment technology.
Features:
1. Fully automatic one-key operation, automatic eye tracking, automatic tomography of the macula, optic disc and other parts
2. Comprehensive measurement analysis tools
3. Rich image editing software
4.Monocular comprehensive analysis, optic disc and RNFL analysis
Specifications of SD OCT Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
