Place of Origin:
China
Brand Name:
SYSEYE
Certification:
CE
Model Number:
BIO-1000
Contact Us
Video
Video
Video
Video

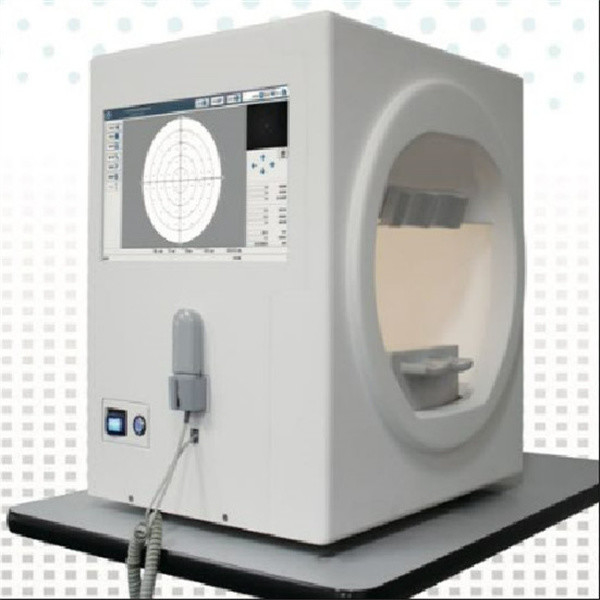

visual field analyzers comprehensive software inspection categories international Goldman standard
The peripherals of Bio-1000 plus automatic computer absorb the advantages of the international advanced visual field measurement equipment. It includes highly integrated computer, optical, mechanical and electronic systems. Combined with advantageous configurations and comprehensive software testing categories, it provides internationalization and strictly follows international Goldman Sachs standards to provide scientific means for glaucoma, fundus diseases, visual pathway damage and nervous system diseases.
Features of Visual Field Analyzer
1. Comprehensive real-time monitoring, Pingzhi Krakow physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reducing the impact of pupil effect on field of vision detection.
2. Personalized design, accurate clinical analysis, accurate and fast inspection strategy.
3. Under the international Goldman Sachs standard, provide various calssic test procedures and report analysis.
4. Provide comprehensive software testing procedures.
Specifications:
|
Basic specification |
small size Visual Field Analyzer |
|
Inspection range |
90° |
|
Inspection distance |
30cm |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb--- -10000asb |
|
Visual target size |
GoldmannIII |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
|
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
|
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
|
Operation system |
Win7 above
|
| Feature |
Visual Field Analyzer 1. Comprehensive real-time monitoring, Pingzhi Krakow physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reducing the impact of pupil effect on visual field detection.
|
Company Introduction
The predecessor of Shenzhen Xinyu Vision Technology Co., Ltd. was established in 2011, with "technology empowerment, innovative vision" as the enterprise development concept, focusing on the continuous innovation and expansion of ophthalmic medical devices. The company consists of Chongqing Bio New Vision Medical Equipment Co., Ltd., which integrates R&D, manufacturing, sales and service. Obtained the national high-tech enterprise, "specialized and special new enterprise", "intellectual property advantage enterprise". Passed the CE13485 system certification, with more than 80 patents and software copyrights
