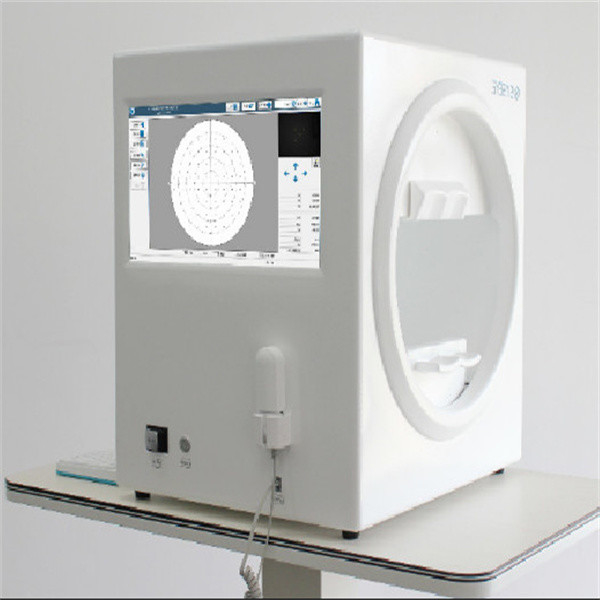

perimeter ophthalmic instrument scientific means in accordance with international Goldman standard
The peripherals of Bio-1000 plus automatic computer absorb the advantages of the international advanced visual field measurement equipment. It includes highly integrated computer, optical, mechanical and electronic systems. Combined with advantageous configurations and comprehensive software testing categories, it provides internationalization, strictly in accordance with international Goldman Sachs standards, and provides scientific means for glaucoma, fundus diseases, visual pathway damage and nervous system diseases.
Features of Visual Field Analyzer
1. Comprehensive real-time monitoring, HeiJji krakau physiological blind spot monitoring, line of sight tracking/head position tracking, automatic measurement of pupil diameter, reducing the impact of pupil effect on visual field detection
2. Abundant threshold detection and super-threshold detection modes, which can detect early visual field defects
3. Scientific and intelligent interactive inspection strategy improves your work efficiency. 3 minutes to inspect a 30° field of view
4. 6 types of analysis: reliability analysis, single report analysis, multi-report analysis, glaucoma semi-field analysis, glaucoma progress analysis, VFI field of view index analysis;
5. Half-time analysis designed for glaucoma to make glaucoma diagnosis easier
6. Analysis of glaucoma progress, very subtle progress is more obvious, and continues to prompt new progress
Specifications:
|
Basic specification |
small size Visual Field Analyzer |
|
Inspection range |
90° |
|
Inspection distance |
30cm |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb--- -10000asb |
|
Visual target size |
GoldmannIII |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
|
Upper Threshold test model |
30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
|
Special detection strategy |
Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
|
Operation system |
Win7 above
|
| Feature |
Visual Field Analyzer 1. Comprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection. 2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy. 3. Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
|
