Ophthalmic Projection Perimeter Instrument For Neurological Disease

Ophthalmic Projection Perimeter Instrument For Neurological Disease

TUV Neurological Disease Projection Perimeter

TUV computerized Projection Perimeter

TUV perimeter ophthalmic instrument

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

BIO-1100

Contact Us

Request A Quote
Product Details
Product Name:
Simple One-stop Modular Software Design Projection Perimeter
Size:
412mm(length)* 497mm(width)* 513mm(height)
Weight:
17kg
Power:
100-240V HZ:50-60Hz
Testing Scope:
90°
Testing Distance:
30CM
Feature:
Simple One-stop Modular Software Design
Visual Target:
Red ,blue
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$5,500.00-$6,600.00
Packaging Details
412mm(length)* 497mm(width)* 513mm(height)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

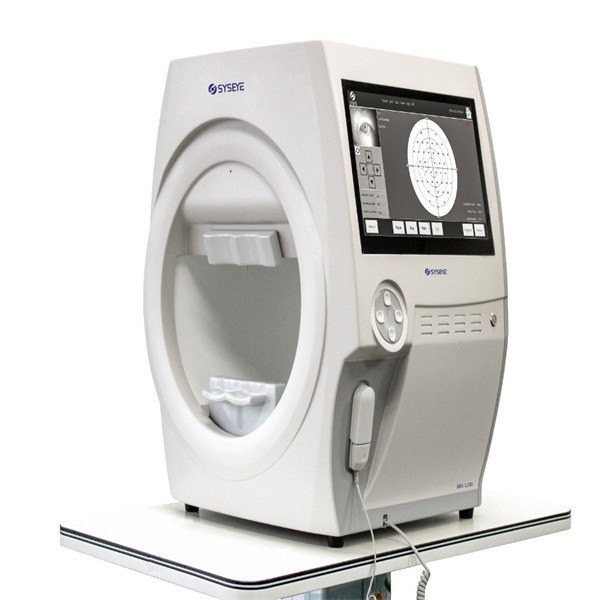

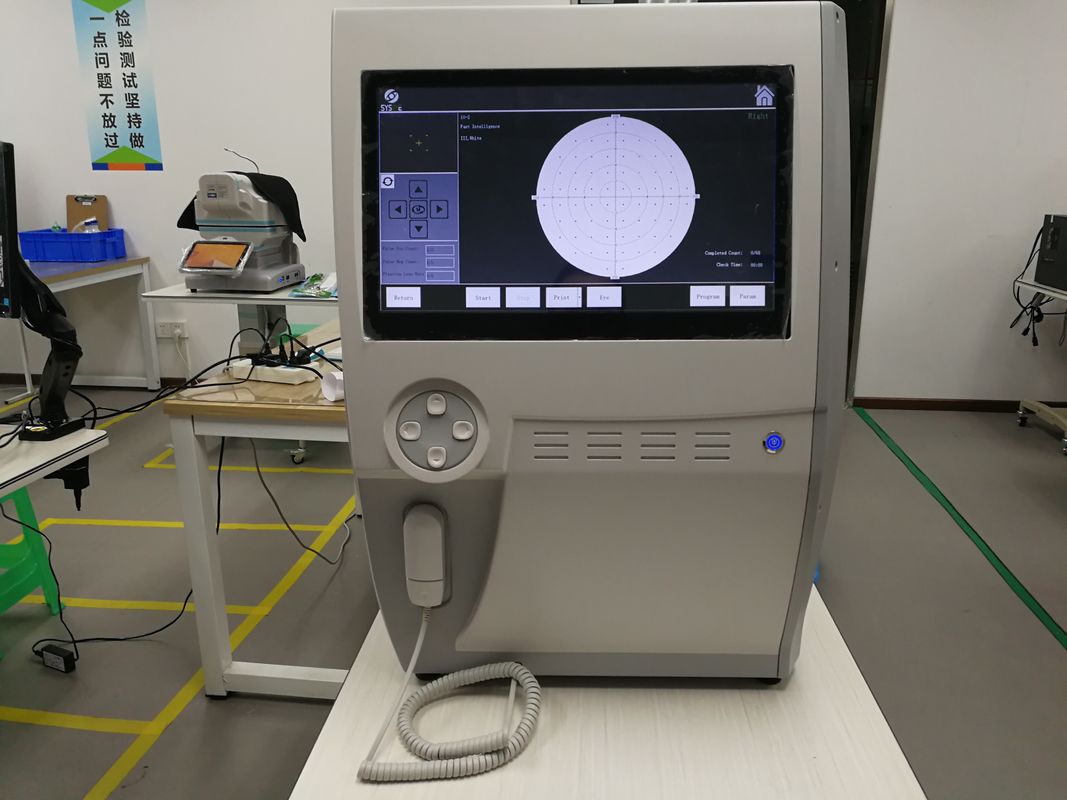

Simple one-stop modular software design Projection Perimeter



Overview

The Visual Field Analyzer (BIO-1000/BIO-1000-Plus) instrument belongs to the category of medical examination equipment. It is an important means to determine the development of glaucoma, optic chiasm damage, neurological disease, toxic amblyopia, retinal disease, choroidal disease and other diseases by alignment the change of visual field. This product For scientific research, teaching, and clinical use. Projection Perimeter  is suitable for auxiliary diagnosis of glaucoma. Purpose of visual field examination



 Diagnosing ocular diseases, especially glaucoma.
 Evaluating neurological diseases.
 Monitoring the progress of ocular and neurological diseases.



Indications for Use
Visual Field Analyzer i
Visual Field Analyzer is a computer automated perimeter that can monitor, assist and diagnose and manage eye diseases, such as glaucoma and related neurological diseases.



Technical Specification of Projection Perimeter



Specification
Testing scope 90°
Testing distance 30CM
Background light white31.5asb,yellow315asb
Visual target 0.08asb---10000asb(0-51DB)
Target size GoldmannⅠ, II ,III,IV,V
Visual target stimulation time 200ms
Visual target interval time Standard and custom
Threshold policy Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy C-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategy Esterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testing Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target Red ,blue
Dynamic policy Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy Static custom dynamic custom
Pupil size measurement Auto
Fixation monitoring Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing Auto
Analysis software reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System Win7 above
Others
Size 412mm(length)* 497mm(width)* 513mm(height)
Wight 17kg
Power

100-240V HZ:50-60Hz



Feature of Projection Perimeter



* Rigorous implementation of Goldman international standard.

* Halogen projection system:Stimulation light source is from wide band visible spectrum, fully meet colored cone cell stimulation.

* Accurate and elaborate database of normal population of all age groups, recognition of more subtle early visual field defects.

* GHT glaucoma semi vision analysis, make glaucoma diagnosis easier.

* GPA glaucoma progression analysis upgrade, slight glaucoma development is obvious.

* Standard SWAP blue-yellow visual field examination, sensitive to earlier visual field defects

* Scientific and intelligent interactive inspectio strategy, 30° range visual field inspection only takes 3 minutes.

* Projection Perimeter Simple one-stop modular software design, equipment operation learning only 2 minutes

* Zeiss humphrey 860 same function

Ophthalmic Projection Perimeter Instrument For Neurological Disease 0



Company Introduction

Ophthalmic Projection Perimeter Instrument For Neurological Disease 1

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

Ophthalmic Projection Perimeter Instrument For Neurological Disease 2
