Overview

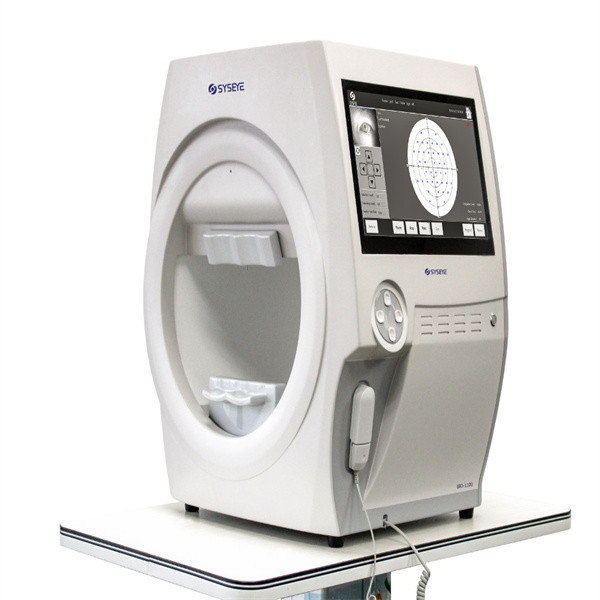

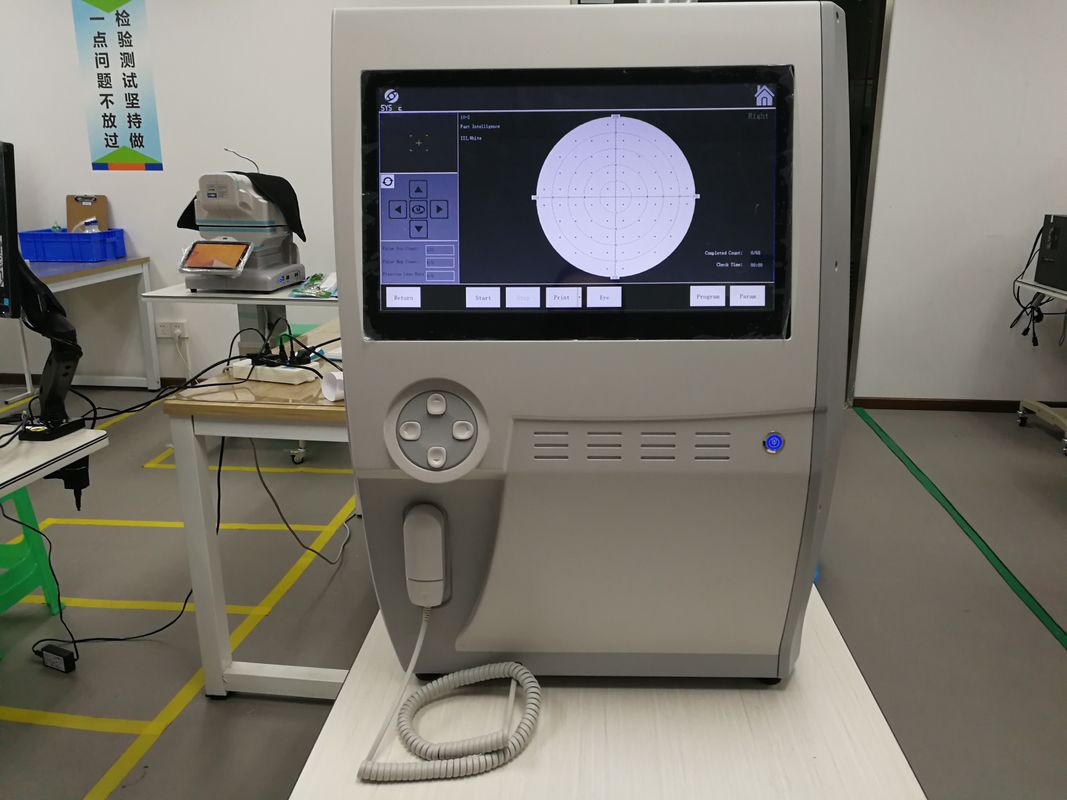

SYSEYE BIO-1100 is a projection perimeter with a 90° visual field and 30 cm testing distance. It supports common strategies (10-2/24-2/30-2/60-4, nasal step, Esterman mono/binocular) and analyses (GHT/GPA, VFI), with SWAP (blue-yellow) for earlier detection of defects. Internal fixation and fixation monitoring help ensure reliable results. Ships in 5 working days; MOQ = 1.
Key Benefits
• 90° scope and 30 cm distance for routine clinical and screening use
• SWAP (blue-yellow): 440 nm blue stimulus with 315 asb yellow background
• Comprehensive strategies: 10-2 / 24-2 / 30-2 / 60-4, nasal step, Esterman mono/binocular
• Progress & reliability analyses: GHT, GPA, VFI, with reliability indices
• Fixation & monitoring: blind-spot monitoring, eye-position monitoring/alarm, eye-tracking curve
• Easy to learn; training provided; clear reporting
Indications / Use Cases
• Screening and follow-up for glaucoma and suspects
• Evaluation of neuro-ophthalmic conditions
• Health-check centers, community screening, and education
Test Strategies (excerpt)
• Threshold: Macula, 10-2, 24-2, 30-2, 60-4, nasal step
• Suprathreshold: C-40, C-64, C-76, FF-81, FF-120, FF-135, etc.
• Special/Screening: Esterman (mono/binocular), upper 36° screening, blind-spot localization
• SWAP (blue-yellow): 440 nm blue stimulus + 315 asb yellow background (OG530)
Reports & Analyses• Reliability indices; single- or triple-page reports
• GHT glaucoma hemifield analysis, GPA progression, VFI
• SWAP analysis
• Export supported (e.g., PDF)
Technical Specifications (key)
• Testing scope: 90°
• Testing distance: 30 cm
• Background luminance: white 31.5 asb; yellow 315 asb
• Stimulus luminance range: 0.08–10,000 asb (0–51 dB)
• Stimulus size: Goldmann I–V
• Stimulus duration: 200 ms; interval: standard/custom
• Dynamic strategies: standard, blind-area dynamic, dark-spot dynamic, straight-line dynamic
• Custom strategies: static and dynamic customizable
• Pupil size measurement: automatic
• Fixation monitoring: blind-spot and eye-position monitoring, alarm, eye-tracking curve
• Ambient light test: automatic
• System: Windows 7 or above
• Dimensions/Weight: 412 × 497 × 513 mm / 17 kg
• Power: AC 100–240 V, 50/60 Hz
• Delivery & MOQ: ships in 5 working days; MOQ = 1
Quick Enquiry (reply within 12 hours)
Please share: (1) Organization (Clinic/Hospital/Distributor) (2) Country/Region (3) Quantity & target delivery date (4) WhatsApp or Email. We’ll send distributor/volume pricing and offer a 15-min live demo.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
