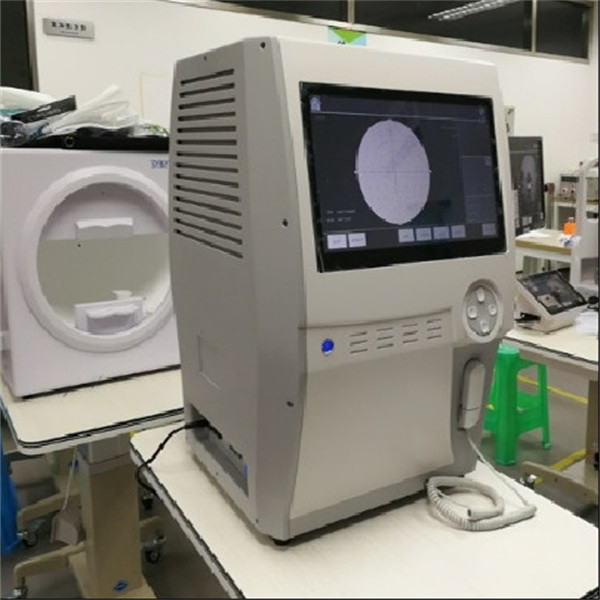

GHT Glaucoma Semi Vision Analysis reliability Automated Projection Perimeter
Operation instructions: Register patient information and complete the patient information form.
Operation steps:
In the main menu, click the "New" "New" inspection button.
In the Patient Management screen, enter patient data (serial number, first name, last name, gender, eyes, date of birth, doctor, ID card).
Enter Spherical, Cylindrical and Axial mirrors again. Click the "Calculate" button and press the "Start Check" button to enter the "Check Screen".
Projected Perimeter Feature
*Strictly implement international high standard technology.
*This database is so rich and complete that it allows the identification of more subtle early visual field defects.
*Glaucoma can be diagnosed more easily by analyzing the glaucoma's half vision.
*GPA analysis for glaucoma progression escalated, mild glaucoma progressed significantly.
| Specification | ||
| Testing scope | 90° | |
| Testing distance | 30CM | |
| Background light | white31.5asb,yellow315asb | |
| Visual target | 0.08asb---10000asb(0-51DB) | |
| Target size | GoldmannⅠ, II ,III,IV,V | |
| Visual target stimulation time | 200ms | |
| Visual target interval time | Standard and custom | |
| Threshold policy | Macula,10-2,24-2,30-2,60-4,nasal side | |
| Upper threshold policy | C-40,C-64,C-76,FF-81,FF-120,FF-135…… | |
| Special detection strategy | Esterman monocular,Esterman binocular,upper 36°screening,blind point testing | |
| Yellow-blue testing | Standard 440nm blue visual target + 315asb OG530yellow background brightness | |
| Visual target | Red ,blue | |
| Dynamic policy | Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic | |
| Custom policy | Static custom dynamic custom | |
| Pupil size measurement | Auto | |
| Fixation monitoring | Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve | |
| Environment light testing | Auto | |
| Analysis software | reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis | |
| System | Win7 above | |
| Others | ||
| Size | 412mm(length)* 497mm(width)* 513mm(height) | |
| Wight | 17kg | |
| Power |
100-240V HZ:50-60Hz |
|
Projection Perimeter features the following Easy operation
Touch screen design speeds data input.
Menu and icon commands simplify operation.
On-screen video eye monitor is standard on all models.
Confirmation screens reduce unintentional data loss.
A keyboard and trackball or mouse can be connected to the Visual Field Analyzer as optional
datainput devices.
Projection Perimeter other feature
*Scientific intelligent interactive detection strategy, 30° detection range field of view only takes 3 minutes.
*Simple one-stop modular software design, only 2 minutes for equipment operation and learning
*Same features of Zeiss Humphrey 860
*Halogen projection system: The stimulating light source comes from the broadband visible spectrum, fully satisfying the stimulation of color cone cells.
