Goldmann Projection Perimeter For Neurological Diseases

Goldmann Projection Perimeter For Neurological Diseases

30cm Neurological Diseases Projection Perimeter

30cm Projection Perimeter

TUV goldmann visual field machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Goldman International Standard Projection Perimeter
412mm(length)* 497mm(width)* 513mm(height)
100-240V HZ:50-60Hz
Testing Scope:
Testing Distance:
Goldman International Standard
Visual Target:
Red ,blue
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
412mm(length)* 497mm(width)* 513mm(height)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

Rigorous implementation of Goldman international standard Projection Perimeter


This instrument features the following Easy operation
 Touch screen design speeds data input.
 Menu and icon commands simplify operation.
 On-screen video eye monitor is standard on all models.
 Confirmation screens reduce unintentional data loss.
A keyboard and trackball or mouse can be connected to the Visual Field Analyzer as optional
datainput devices.


Technical Specification of Projection Perimeter


Testing scope 90°
Testing distance 30CM
Background light white31.5asb,yellow315asb
Visual target 0.08asb---10000asb(0-51DB)
Target size GoldmannⅠ, II ,III,IV,V
Visual target stimulation time 200ms
Visual target interval time Standard and custom
Threshold policy Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy C-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategy Esterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testing Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target Red ,blue
Dynamic policy Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy Static custom dynamic custom
Pupil size measurement Auto
Fixation monitoring Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing Auto
Analysis software reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System Win7 above
Size 412mm(length)* 497mm(width)* 513mm(height)
Wight 17kg

100-240V HZ:50-60Hz



Projection Perimeter Visual field analyzer (bio-1000 / bio-1000 +) belongs to Ophthalmic medical examination equipment. It is an important means to determine the development of Ophthalmology Glaucoma, optic chiasmatic injury, nervous system diseases, toxic amblyopia, retinal diseases, choroidal diseases Alignment of disease with other diseases and changes in visual field. This product is used for scientific research Research, teaching and clinical application. The projection perimeter is suitable for the auxiliary diagnosis of glaucoma. Purpose of visual field examination

Diagnosis of eye diseases, especially glaucoma. Assessment of neurological diseases. Monitoring the progress of eye and nervous system diseases. Indication use My visual field analyzer Field of view analyzer is a kind of computer automatic peripheral monitoring, auxiliary and diagnostic system And manage eye diseases, such as glaucoma and related neurological diseases.

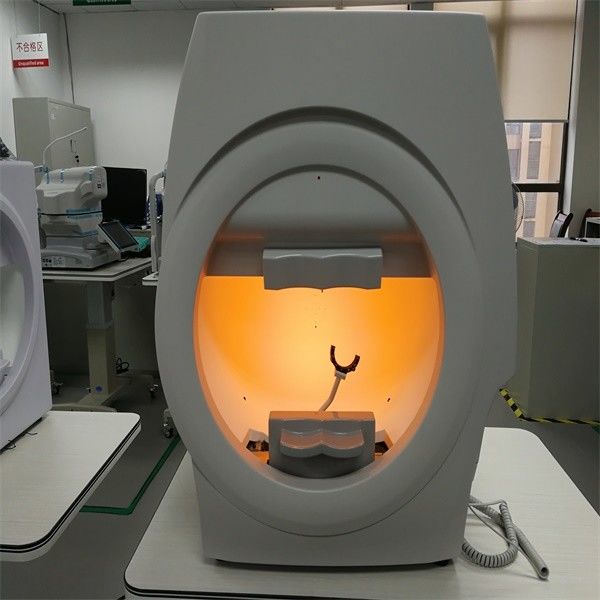

Goldmann Projection Perimeter For Neurological Diseases 0


Company Introduction

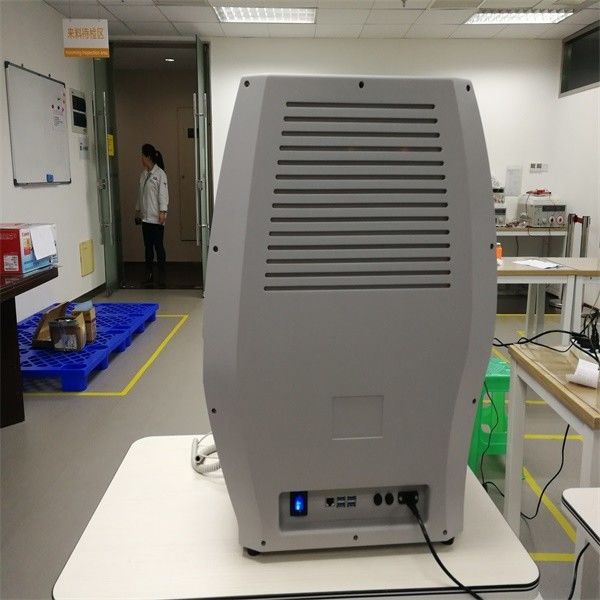

Goldmann Projection Perimeter For Neurological Diseases 1

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.

Goldmann Projection Perimeter For Neurological Diseases 2
