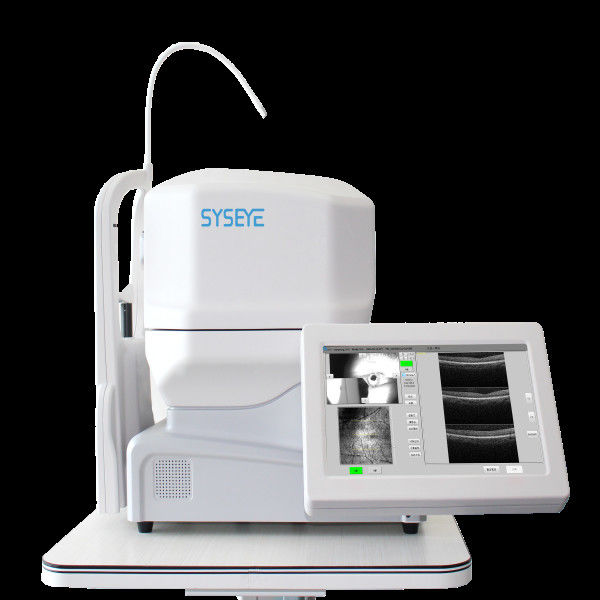

OCT Optical Coherence Tomography Machine Posterior Segment

OCT Optical Coherence Tomography Machine Posterior Segment

outpatient Optical Coherence Tomography Machine

2.5mm Optical Coherence Tomography Machine

Posterior Segment oct imaging system

Place of Origin:


Brand Name:




Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Posterior Segment Optical Coherence Tomography Machine
Dimensions Weight:
34 Kg (75 Lbs)
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Posterior Segment OCT
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

Posterior Segment OCT Imaging Device Optical Coherence Tomography Machine


RetiView 500 is an integrated automated ophthalmic outpatient diagnostic device that does not require much routine maintenance and requires only routine cleaning of human contacts. Before performing cleaning maintenance, please disconnect the power supply from the equipment.


Optical Coherence Tomography Machine (OCT) USES frequency domain optical coherence tomography (SD-OCT) to obtain three-dimensional tomography images of the posterior segment of the eye. Sd-oct is based on low-coherent optical interferometry. In SD-OCT, light from a low-coherence source is divided by the interferometer into a sampling path (into the eye) and a reference path. The beam returning from both paths passes through the interferometer and mixes to the spectrometer. The spectrometer detects the mixed spectrum of all frequencies at the same time, and the Fourier transform of this spectrum can be used to obtain the intensity of the light signal backscattered at different depths. Since different tissues have different backscattering rates, the optical signal contains the structural information of retinal tissues. The 3d tomographic images of the retina can be obtained by transverse scanning and reconstruction of the acquired signals.


Specifications of  Optical Coherence Tomography Machine


Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)


Compact Design



1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.


Optical Coherence Tomography Machine  has never been so affordable. More people can benefit from the advanced technology now.


Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3

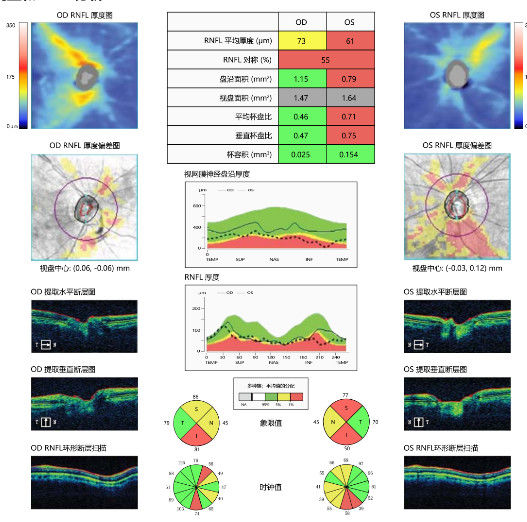

Browse and analyze the acquired images.

OCT Optical Coherence Tomography Machine Posterior Segment 0

OCT Optical Coherence Tomography Machine Posterior Segment 1

OCT Optical Coherence Tomography Machine Posterior Segment 2

OCT Optical Coherence Tomography Machine Posterior Segment 3

OCT Optical Coherence Tomography Machine Posterior Segment 4
