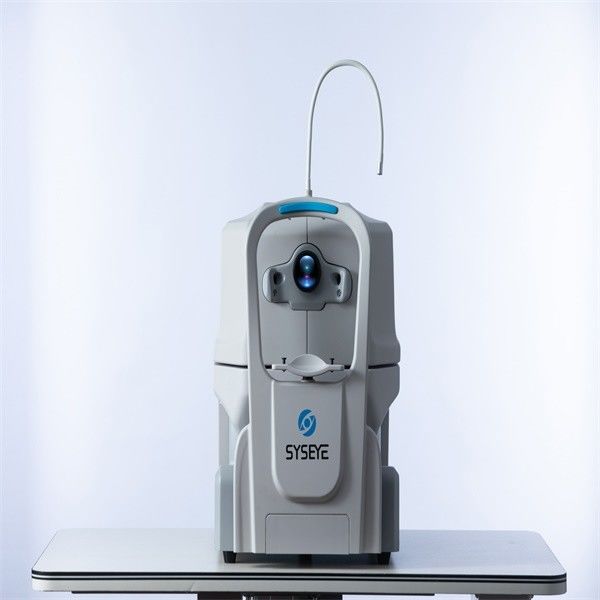

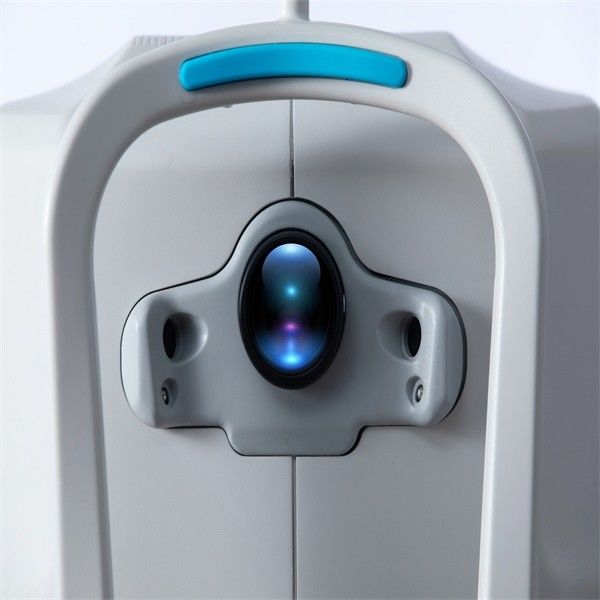

Circle Optical Coherence Tomography Machine Non Contact

Circle Optical Coherence Tomography Machine Non Contact

4mm Optical Coherence Tomography Machine

Circle Optical Coherence Tomography Machine

Non Contact handheld oct scanner

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Compact Design Optical Coherence Tomography Machine
Dimensions Weight:
34 Kg (75 Lbs)
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3mm
Feature:
Compact Design
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

Compact Design Everything Is Inside This Compact Body Optical Coherence Tomography Machine



Advantages of Optical Coherence Tomography Machine examination



1. OCT images clearly show the location and layers of the lesion, while FFA shows the superposed angiographic images of the examined tissue.



2. high resolution, axial resolution of 10μm, better than B-mode ultrasound (30~40μm).



3. Measurement of tissues can reach the micron level, such as the measurement of macular hole or macular edema.



4. the use of near infrared light as a detection wave, can pass through the slightly cloudy refractive stroma.



5. the examination is non-contact, no trauma and flash sense, easy to be accepted by the patient.



6. Non-dilated (4mm) can also be checked, but the effect of dilated pupil examination is better.



Specifications of  Optical Coherence Tomography Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)



Compact Design



Features:

1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.



Optical Coherence Tomography Machine  has never been so affordable. More people can benefit from the advanced technology now.



Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3

Browse and analyze the acquired images.

Circle Optical Coherence Tomography Machine Non Contact 0

Circle Optical Coherence Tomography Machine Non Contact 1

Circle Optical Coherence Tomography Machine Non Contact 2

Circle Optical Coherence Tomography Machine Non Contact 3

Circle Optical Coherence Tomography Machine Non Contact 4

Company Introduction

Circle Optical Coherence Tomography Machine Non Contact 5

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
