3D Optical Coherence Tomography Equipment High Resolution

3D Optical Coherence Tomography Equipment High Resolution

3D Optical Coherence Tomography Equipment

2.5mm Optical Coherence Tomography Equipment

High Resolution OCT Machine Ophthalmology

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Compact Design Optical Coherence Tomography Machine
Dimensions Weight:
34 Kg (75 Lbs)
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Feature:
Compact Design No External Computer Is Needed
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

Compact Design No External Computer Is Needed Optical Coherence Tomography Machine



Compared to other imaging techniques, such as ultrasonic imaging, magnetic resonance imaging (MRI), X-ray computed tomography (CT), etc., Optical Coherence Tomography Machine technology has compared with high resolution (a few microns), at the same time, and focus on microscopic (, multiphoton microscopy compared to the ultra-high resolution techniques such as OCT technology and possess larger compared with chromatography. OCT fills the gap between these two types of imaging technologies.



Compact Design



Features:

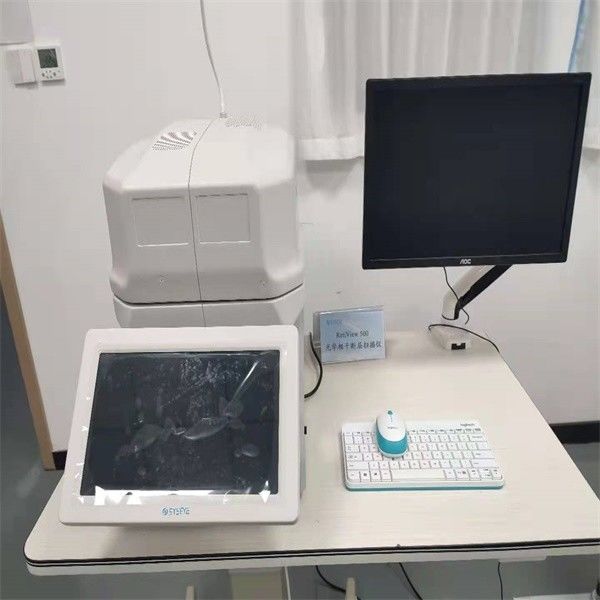

1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.



Specifications of  Optical Coherence Tomography Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)





Optical Coherence Tomography Machine  has never been so affordable. More people can benefit from the advanced technology now.



Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3

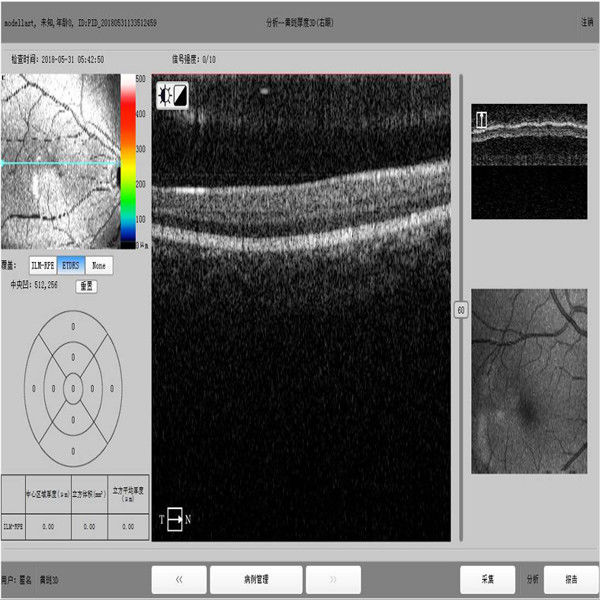

Browse and analyze the acquired images.
