Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
RetiView 500
Contact Us
Peripheral devices such as keyboard or printer can be connected to the computer Optical Coherence Tomography Machine

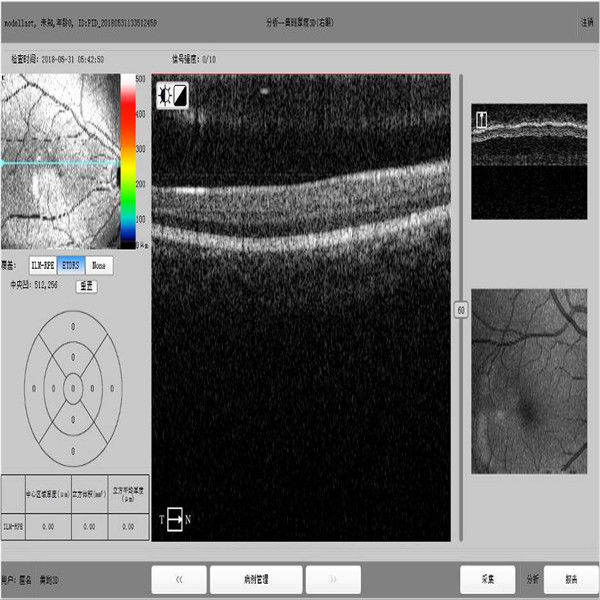

Measurement of lesion thickness OCT allows tissue measurements in vivo, such as measurement and quantitative analysis of thickness and hiatus size of macular edema. (1) Macular hole: it can be identified as full-thickness macular hole, lamellar hole or pseudohole, or just a small cyst. These lesions are sometimes difficult to be determined by slit lamp and total retinoscopy, and OCT is superior to other examination methods in the identification of macular hole. (2) observed before and after the treatment such as medication or before and after laser photocoagulation treatment for Optical Coherence Tomography Machineto measure the thickness of macular edema are available, and can also be used for macular hole surgery efficacy judgment, Optical Coherence Tomography Machine images can show after treatment in is fully recover the original form or just for the hole edge attached with a defect is still visible, the curative effect of judgment is very helpful.

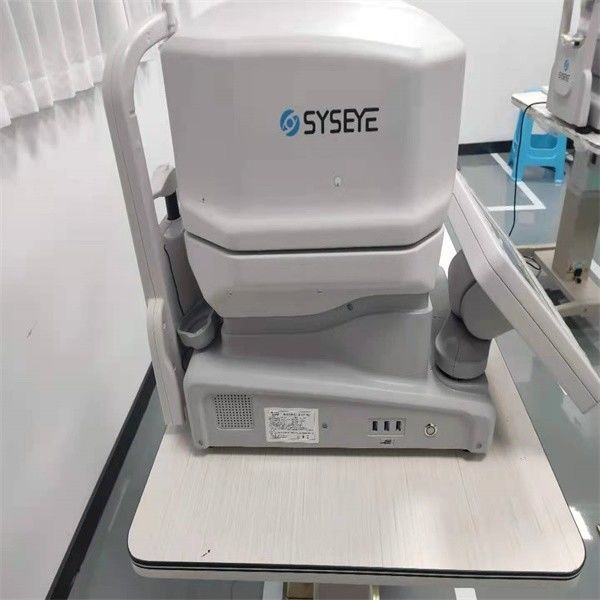

Compact Design
Features:
1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.
Specifications of Optical Coherence Tomography Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |
Optical Coherence Tomography Machine has never been so affordable. More people can benefit from the advanced technology now.
Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3
Browse and analyze the acquired images.
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
