Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy

Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy

Eye Lesions SD OCT Machine

Circle SD OCT Machine

3mm retinal scan machine

Place of Origin:


Brand Name:




Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
SD OCT Machine
Dimensions Weight:
34 Kg (75 Lbs)
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Accurately Determine The Location Of Eye Lesions
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

Accurately Determine The Location Of Eye Lesions SD OCT Machine


SD OCT Machine examination mainly includes:


1.  Macular hole:SD OCT Machine can clearly show the defect of retinal neuroepithelial light band in macular area.


2. Central serous choroidal retinopathy: SD OCT Machine appears as a neurodermal bulge in the macular area, beneath which fluid hyporeflectance is visible.


3. The anterior membrane of the retina: OCT is manifested as a highly reflective signal in the macular area close to the front of the retina, which can be continuous or intermittent


4.  Polypoid choroidal vascular lesions: OCT can show the location, shape and range of detachment of retinal neuroepithelium and pigment epithelium, as well as high and steep detachment of pigment epithelium. The detachment lumen can be clear serous fluid or blood of different concentrations.


5.  Age-related macular degeneration: OCT can clearly show vitreous warts, choroidal neovascularization and their size and shape, as well as macular sac.


6.  Diabetic retinopathy: The etiology and course of the glycoreticulum are varied, but the typical fundus changes in each period can be shown in COT. Such as fundus punctate exudation, macular fovea detachment, hemorrhage, macular cystic edema and so on.


7.  High myopia fundus lesions: OCT can show all retinal levels and choroid deletion in the nasal atrophic arc of optic disc, and know whether there is atrophy and thinning of the posterior polar retina, retinal cleavage and shallow retinal detachment, and vitreous macular traction.


8.  Study on early diagnosis, follow-up and pathogenesis of glaucoma: frequency-domain OCT has potential advantages in the diagnosis and follow-up of glaucoma. It can show different degree of thinning of nerve fiber layer around optic disc, thinning of optic nerve fiber layer, glaucoma cup and other pathological changes that can not be found or difficult to be found by conventional fundus examination.


9.  Keratopathy: The anterior segment mode of OCT can measure the thickness of the cornea, display the infiltration and thinning caused by corneal inflammation, corneal foreign body and the depth of foreign body, etc., which is of great significance for the diagnosis and further treatment of keratopathy.


10.  Angle examination: The Angle mode of OCT can distinguish open Angle glaucoma from Angle closure glaucoma. Compared with UBM examination, OCT does not touch the cornea and is easy to operate, which can partially replace UBM in the diagnosis and treatment of glaucoma.


Specifications of  SD OCT Machine


Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3 mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz
Power supply 497 mm × 395 mm × 490 mm (L × W × H)
Dimensions Weight 34 kg (75 lbs)

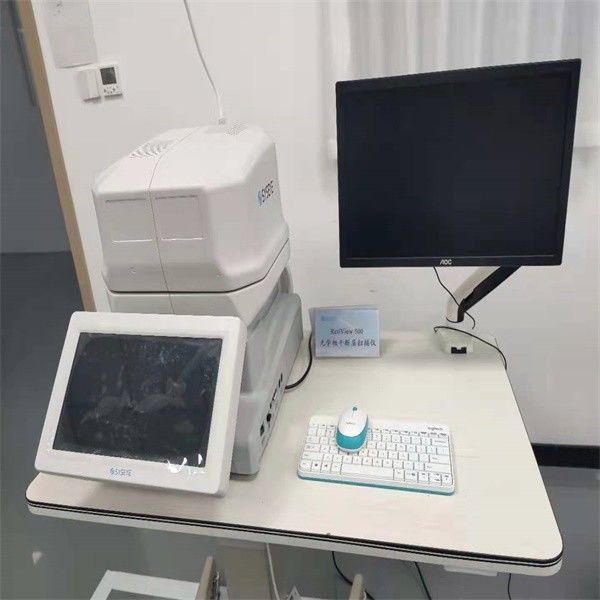

Compact Design



1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.

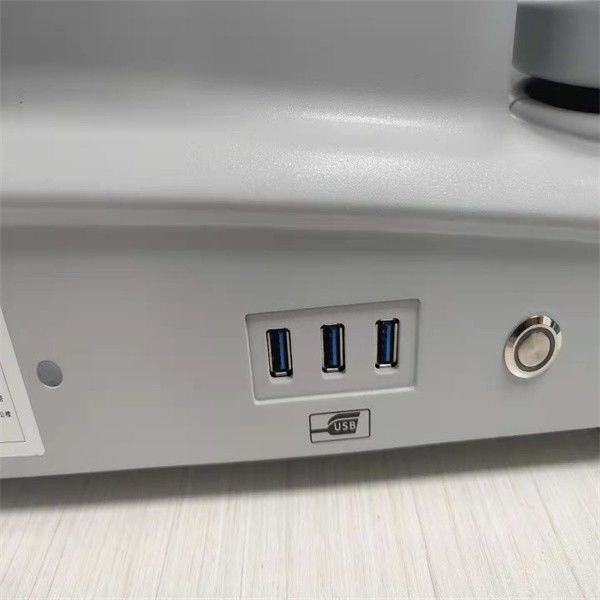

2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.


SD OCT Machine  has never been so affordable. More people can benefit from the advanced technology now.


Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3

Browse and analyze the acquired images.

Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy 0

Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy 1

Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy 2

Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy 3

Circle SD OCT Machine Eye Lesions Keratopathy Retinopathy 4
