PC Inside Oct Scan Machine 75 Lbs For Fundus Diseases Glaucoma

PC Inside Oct Scan Machine 75 Lbs For Fundus Diseases Glaucoma

Fundus Diseases Oct Scanner Machine

75 lbs Optical Coherence Tomography Machine

Glaucoma Oct Scanner Machine

Place of Origin:


Brand Name:




Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Oct Scan Machine PC Inside Easy Installation White For Various Fundus Diseases And Glaucoma
Dimensions Weight:
34 Kg (75 Lbs)
Axial Resolution:
≤6 µm (in Tissue)
Transverse Resolution:
≤20 µm (in Tissue)
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Power Supply:
220 VAC, 50Hz
Ambient Temperature:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

oct scan machine PC inside easy installation white for various fundus diseases and glaucoma


oct scan machine is an automatic posterior segment OCT imaging device. It integrates advanced automatic control imaging technology, allowing users to obtain retinal OCT data of patients with the simplest operation, comprehensively display the three-dimensional structure information of the fundus, and help doctors make accurate judgments. oct scan machine helps us to reunderstand the nature of the disease, but OCT clearly shows that the macular neurocortex has thinned and almost disappeared. If pathological myopia does not have crack again of extremely shallow break off or be amalamative retinal split, retinal split can be seen at congenital and a variety of diseases such as inflammation, trauma, denaturation, be in pathological myopia nevertheless more see. These lesions are not visible by other imaging methods, and OCT allows us to redefine the associated fundus lesions.


Compact Design



1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.


Specifications of  Optical Coherence Tomography Machine


Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard
humidity 40~80% RH
Dimensions Weight 34 kg (75 lbs)



This product is an Optical Coherence Tomography (OCT) system intended for
use as a non-invasive imaging device for viewing and measuring ocular tissue
structures with micrometer range resolution. The Retiview 500 is a computer
controlled ophthalmic imaging system. The device scans the patient’s eye using a
low coherence interferometer to measure the reflectivity of retinal tissue.

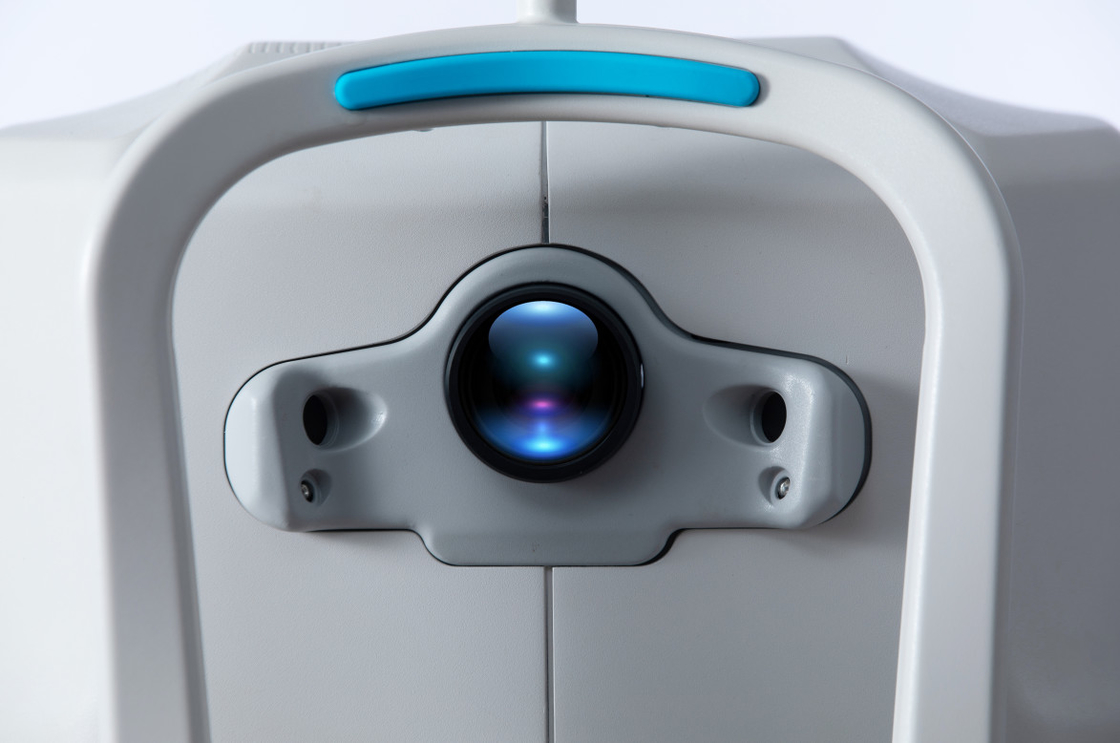

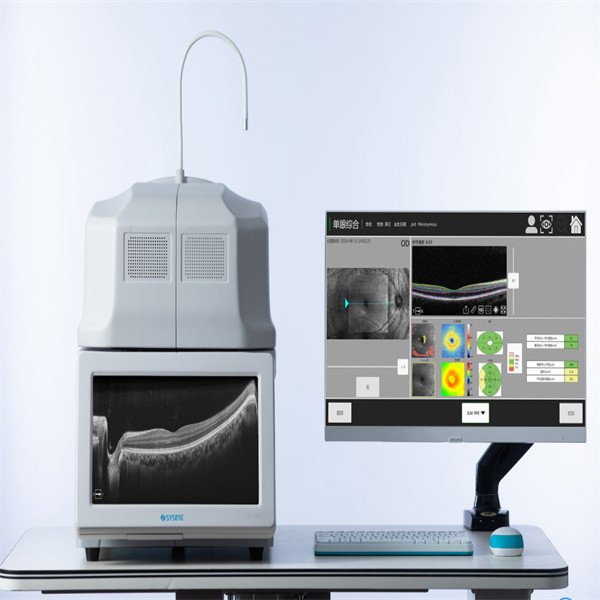

PC Inside Oct Scan Machine 75 Lbs For Fundus Diseases Glaucoma 0PC Inside Oct Scan Machine 75 Lbs For Fundus Diseases Glaucoma 1
