Ophthalmology Optical Coherence Tomography Machine 1060 Hpa Fully Automated

Ophthalmology Optical Coherence Tomography Machine 1060 Hpa Fully Automated

Ophthalmology Oct Machine Fully Automated

Raster Optical Coherence Tomography Machine

1060 hpa Coherence Tomography Machine

Place of Origin:

China

Brand Name:

SYSEYE

Certification:

TUV

Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Noninvasive Ophthalmic Imaging Diagnostic Techniques Optical Coherence Tomography Machine
Use Condition:
Humidity 40~80% RH
Storage And Transportation:
Humidity ≤90% RH
Air Pressure:
760~1060hpa
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Feature:
Noninvasive Ophthalmic Imaging Diagnostic Techniques
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$18,500.00-$21,900.00
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
T/T
Supply Ability
100
Product Description

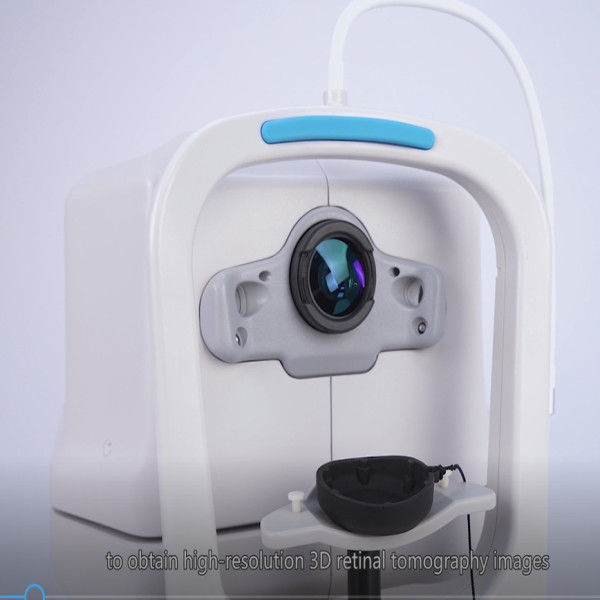

oct machine ophthalmology fully automated operation advanced signal optimization assure quality OCT images



The small footprint and all-in-one system fits in thesmallest examination room. The flexible monitor locations allows various operator positions.
with more than 4 scan mode on macular and optic part, the software creats a summary annalysis of macula retina, RNFL,ONH. Progress analysis for follow-up examination is available. Optical Coherence Tomography Machine helps us to reunderstand the nature of the disease, but OCT clearly shows that the macular neurocortex has thinned and almost disappeared. If pathological myopia does not have crack again of extremely shallow break off or be amalamative retinal split, retinal split can be seen at congenital and a variety of diseases such as inflammation, trauma, denaturation, be in pathological myopia nevertheless more see. These lesions are not visible by other imaging methods, and OCT allows us to redefine the associated fundus lesions.

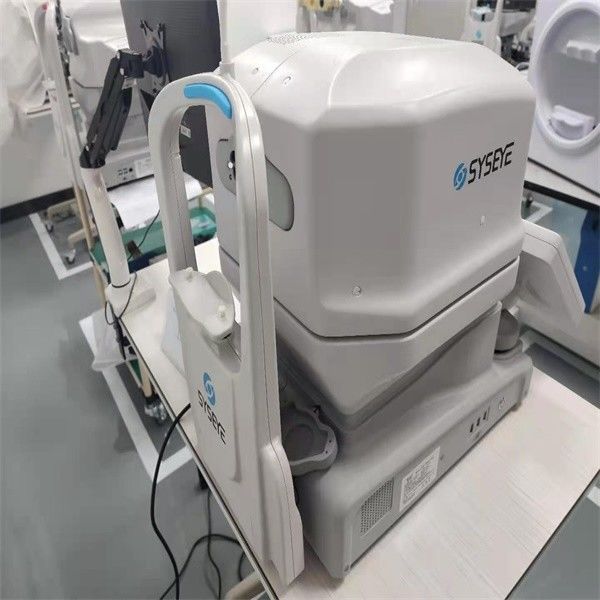

Compact Design



Features:

1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.



Specifications of  Optical Coherence Tomography Machine



Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard
Power supply 100-240 V, 50/60 Hz
Dimensions Weight 34 kg (75 lbs)



Ophthalmology Optical Coherence Tomography Machine 1060 Hpa Fully Automated 0





Ophthalmology Optical Coherence Tomography Machine 1060 Hpa Fully Automated 1











Company Introduction

Ophthalmology Optical Coherence Tomography Machine 1060 Hpa Fully Automated 2

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
