Handheld Optical Coherence Tomography Scanner Machine With Easy Operation

Handheld Optical Coherence Tomography Scanner Machine With Easy Operation

Handheld Optical Coherence Tomography Scanner

Easy Operation Optical Coherence Tomography Machine

Ophthalmic Imaging Diagnostic Coherence Tomography Scanner

Place of Origin:


Brand Name:




Model Number:

RetiView 500

Contact Us

Request A Quote
Product Details
Product Name:
Noninvasive Ophthalmic Imaging Diagnostic Techniques Optical Coherence Tomography Machine
CPU Main Frequency Larger Than 2.0 GHz
Hard Disk:
>500 G
Scan Depth:
≥2.5 Mm (in Air)
Focus Adjustment:
-15D To +15D
Pupil Diameter:
≥3 Mm
Noninvasive Ophthalmic Imaging Diagnostic Techniques
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
497 mm × 395 mm × 490 mm (L × W × H) 34 kg (75 lbs)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

handheld oct scanner with affordable quality advanced technology easy operation


handheld oct scanner helps us to reunderstand the nature of the disease, but OCT clearly shows that the macular neurocortex has thinned and almost disappeared. If pathological myopia does not have crack again of extremely shallow break off or be amalamative retinal split, retinal split can be seen at congenital and a variety of diseases such as inflammation, trauma, denaturation, be in pathological myopia nevertheless more see. These lesions are not visible by other imaging methods, and OCT allows us to redefine the associated fundus lesions.Optical Coherence Tomography Machine images showed that fluid from the retinal detachment or cleavage cavity had channels leading behind the optic nerve and had no communication with the vitreous body

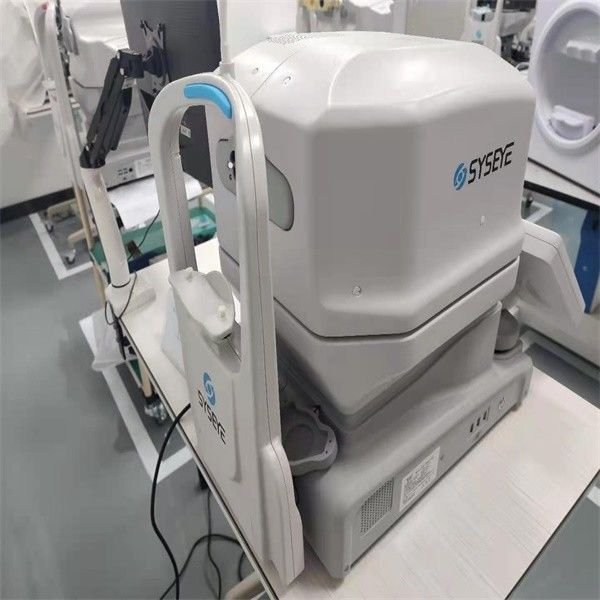

Compact Design



1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.

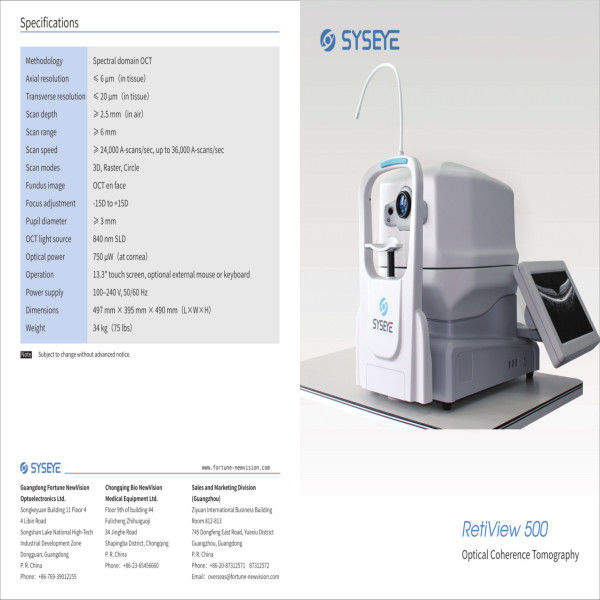

Specifications of  Optical Coherence Tomography Machine


Methodology Spectral domain OCT
Axial resolution ≤6 µm (in tissue)
Transverse resolution ≤20 µm (in tissue)
Scan depth ≥2.5 mm (in air)
Scan range ≥6 mm
Scan speed ≥24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes 3D, Raster, Circle
Fundus image OCT en face
Focus adjustment -15D to +15D
Pupil diameter ≥3mm
OCT light source 840 nm SLD
Optical power 750 µW (at cornea)
Operation 13.3” touch screen, optional external mouse or keyboard
Power supply 100-240 V, 50/60 Hz
Dimensions Weight 34 kg (75 lbs)


Check items after turning on the power
Turn on the Optical Coherence Tomography power and check the following
Main unit
1) The power indicator lights up.
2) The chin-rest moves smoothly up and down.
Captured image
1) There are no foreign objects in the captured image that affect image reading or
2) Put a blank sheet of paper in front of the objective lens and the capture is


Handheld Optical Coherence Tomography Scanner Machine With Easy Operation 0Handheld Optical Coherence Tomography Scanner Machine With Easy Operation 1





Company Introduction

Handheld Optical Coherence Tomography Scanner Machine With Easy Operation 2

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
