Place of Origin:
China
Brand Name:
SYSEYE
Certification:
TUV
Model Number:
RetiView 500
Contact Us

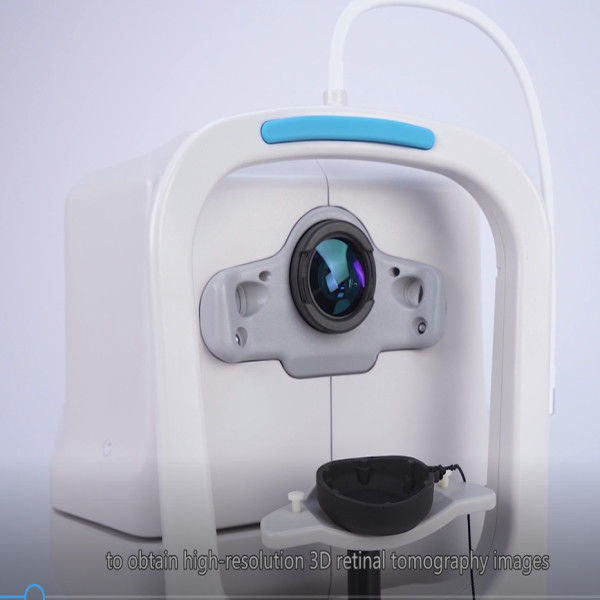

oct machine ophthalmology High definition image and comprehensive analysis software
Optical Coherence Tomography Machine images showed that fluid from the retinal detachment or cleavage cavity had channels leading behind the optic nerve and had no communication with the vitreous body. Optical Coherence Tomography Machine helps us to reunderstand the nature of the disease, but OCT clearly shows that the macular neurocortex has thinned and almost disappeared. If pathological myopia does not have crack again of extremely shallow break off or be amalamative retinal split, retinal split can be seen at congenital and a variety of diseases such as inflammation, trauma, denaturation, with more than 4 scan mode on macular and optic part, the software creats a summary annalysis of macula retina, RNFL,ONH. Progress analysis for follow-up examination is available.
Compact Design
Features:
1. Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2. PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation:No complex connection or setup. Compact body can fit in even small space.
Specifications of Optical Coherence Tomography Machine
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard |
| Power supply | 100-240 V, 50/60 Hz |
| Dimensions Weight | 34 kg (75 lbs) |

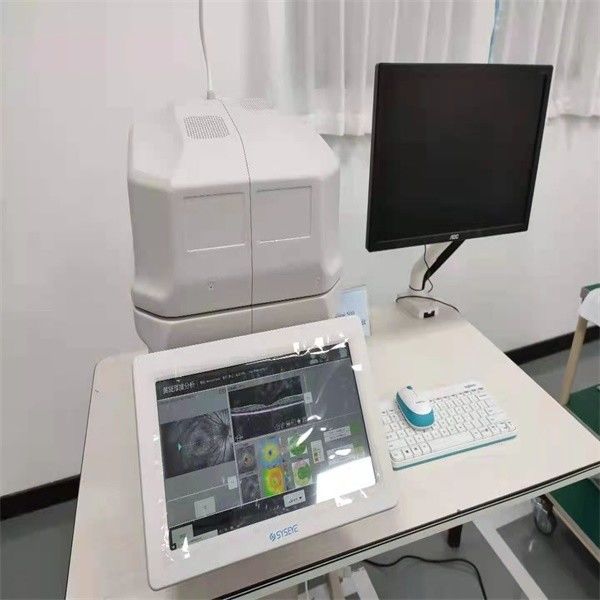

ALL-ONE DESING
*All-in-one design with optional larger external monitor guarantees an installation-free experience.
*Subtle lesion will be precisely identified via high resolution image.
*with more than 4 scan mode on macular and optic part, the software creats a summary annalysis of
Company Introduction
Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
