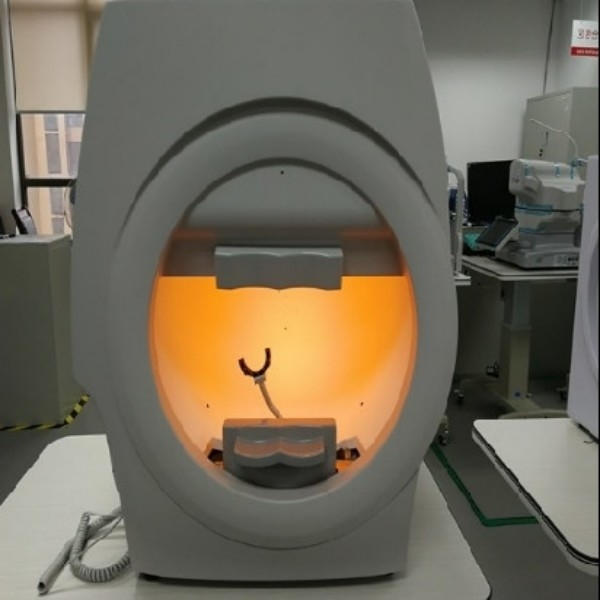

Visual Field Analyzers Projection Perimeter 440 Nm Manage Glaucoma

Visual Field Analyzers Projection Perimeter 440 Nm Manage Glaucoma

visual field analyzers Projection Perimeter

440 nm Projection Perimeter

Manage Glaucoma Projection Perimeter

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Simple One-stop Modular Software Design Projection Perimeter
Stimulus Color:
440 Nm (Blue)
CPU Main Frequency Larger Than 2.0 GHz
100-240V HZ:50-60Hz
Testing Scope:
Testing Distance:
Simple One-stop Modular Software Design
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
412mm(length)* 497mm(width)* 513mm(height)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

visual field analyzers perimeter manage glaucoma and related neurological diseases



The Visual Field Analyzer (BIO-1100) instrument belongs to the category of medical examination equipment. It is an important means to determine the development of glaucoma, optic chiasm damage, neurological disease, toxic amblyopia, retinal disease, choroidal disease and other diseases by alignment the change of visual field. This product For scientific research, teaching, and clinical use. Projection Perimeter  is suitable for auxiliary diagnosis of glaucoma. Purpose of visual field examination



Technical Specification of Projection Perimeter


Testing scope 90°
Testing distance 30CM
Background light white31.5asb,yellow315asb
Visual target 0.08asb---10000asb(0-51DB)
Target size GoldmannⅠ, II ,III,IV,V
Visual target stimulation time 200ms
Visual target interval time Standard and custom
Threshold policy Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy C-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategy Esterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testing Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target Red ,blue
Dynamic policy Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy Static custom dynamic custom
Pupil size measurement Auto
Fixation monitoring Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing Auto
Analysis software reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System Win7 above
Size 412mm(length)* 497mm(width)* 513mm(height)
Wight 17kg

100-240V HZ:50-60Hz


Feature of Projection Perimeter


* Rigorous implementation of Goldman international standard.

* Halogen projection system:Stimulation light source is from wide band visible spectrum, fully meet colored cone cell stimulation.

* Accurate and elaborate database of normal population of all age groups, recognition of more subtle early visual field defects.

* GHT glaucoma semi vision analysis, make glaucoma diagnosis easier.

* GPA glaucoma progression analysis upgrade, slight glaucoma development is obvious.

* Standard SWAP blue-yellow visual field examination, sensitive to earlier visual field defects

* Scientific and intelligent interactive inspectio strategy, 30° range visual field inspection only takes 3 minutes.

* Projection Perimeter Simple one-stop modular software design, equipment operation learning only 2 minutes

* Zeiss humphrey 860 same function


This product is warranted for one year from the date of purchase.
