Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific

Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific

315 Asb Projection Perimeter

Projection Perimeter Visual Field Test Machine

Automated Yellow Projection Perimeter

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Accurate And Elaborate Database Of Normal Population Projection Perimeter
Background Light:
White 31.5asb、yellow 315asb
Environment Light Testing:
100-240V HZ:50-60Hz
Testing Scope:
Testing Distance:
Accurate And Elaborate Database Of Normal Population
Windows 7 Above
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
412mm(length)* 497mm(width)* 513mm(height)
Delivery Time
5 working days
Payment Terms
Supply Ability
Product Description

automated visual field test machine Goldman international standard scientific and intelligent


Visual Field Analyzer (BIO-1100) belongs to the category of medical examination equipment. The comparison of visual field changes is an important means to judge the development of diseases such as glaucoma, optic chiasm damage, nervous system disease, toxic amblyopia, retinal disease, and choroidal disease. This product is intended for scientific research, teaching and clinical use. Circumference is suitable for auxiliary diagnosis of glaucoma.


Feature of Projection Perimeter


*Strict implementation of Goldman Sachs International Standards.
*Halogen projection system: The stimulating light source comes from the broadband visible spectrum, which fully satisfies the stimulation of colored cone cells.
*Accurate and granular database of normal populations of all age groups to identify more subtle early visual field defects.
*GHT glaucoma hemivision analysis, making glaucoma diagnosis easier.
*GPA glaucoma progress analysis upgrade, mild glaucoma development is obvious.
*Standard SWAP blue-yellow visual field test, sensitive to early visual field defects *Scientific and intelligent interactive inspection strategy, 30° visual field test only takes 3 minutes.
*Simple one-stop modular software design for the projection perimeter, it only takes 2 minutes to learn the equipment operation
* Zeiss Humphrey 860 has the same function


Technical Specification of Projection Perimeter


Testing scope 90°
Testing distance 30CM
Background light white31.5asb,yellow315asb
Visual target 0.08asb---10000asb(0-51DB)
Target size GoldmannⅠ, II ,III,IV,V
Visual target stimulation time 200ms
Visual target interval time Standard and custom
Threshold policy Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy C-40,C-64,C-76,FF-81,FF-120,FF-135……
Special detection strategy Esterman monocular,Esterman binocular,upper36°screening,blind point testing
Yellow-blue testing Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target Red ,blue
Dynamic policy Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy Static custom dynamic custom
Pupil size measurement Auto
Fixation monitoring Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing Auto
Analysis software reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System Win7 above
Size 412mm(length)* 497mm(width)* 513mm(height)
Wight 17kg

100-240V HZ:50-60Hz


Projected Perimeter is easy to manipulate with
 Touch screen design speeds up data input.
 Menu and icon commands simplify operation.
 Screen video eye monitor is standard on all models.
 Confirmation screen reduces accidental data loss.
A keyboard, trackball or mouse can be optionally connected to the vision analyzer
data input device.

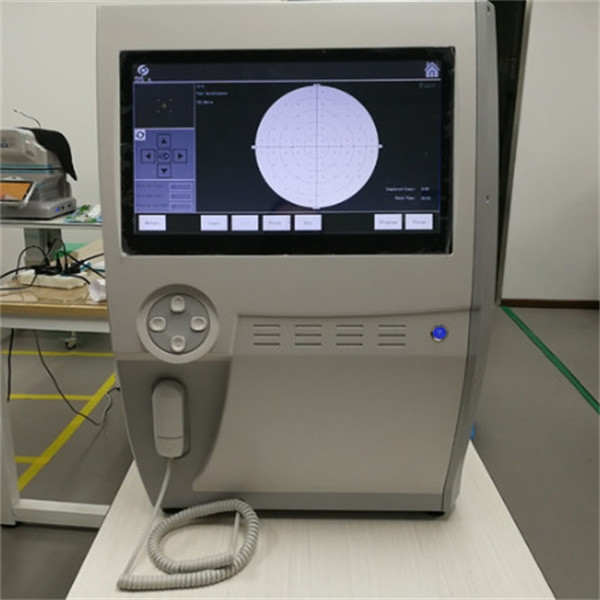

Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific 0Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific 1


Company Introduction

Automated Yellow 315 Asb Projection Perimeter Visual Field Test Machine Scientific 2

Focusing on the two major public health problems of adolescent myopia and elderly ophthalmology, our company researches new diagnostic and treatment equipment for ophthalmology, develops low-cost applicable technology products, realizes industrialization, reduces the cost of social medical and health system, and serves the strategic needs of national health.The company always adhere to the "high-tech,new vision" for the enterprise development concept.We have a strong technical force, has been awarded 11 patents, and obtained 13,485 quality system certification.Bio has established an efficient marketing team and a perfect after-sales service system to provide medical equipment with the highest cost performance and meticulous service.
